Connect The Motherboard To The Power Supply

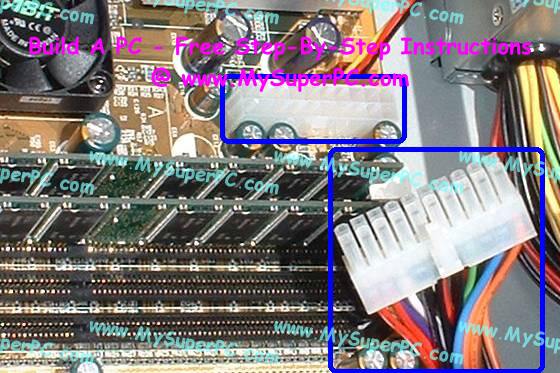

The motherboard is ready to be connected to the power supply. Sort out the motherboard power connector from the tangle of power cords coming from the power supply and plug it into the power supply socket on the motherboard. The picture has the power connector and power socket circled in blue. The connector can only plug into the socket one way.

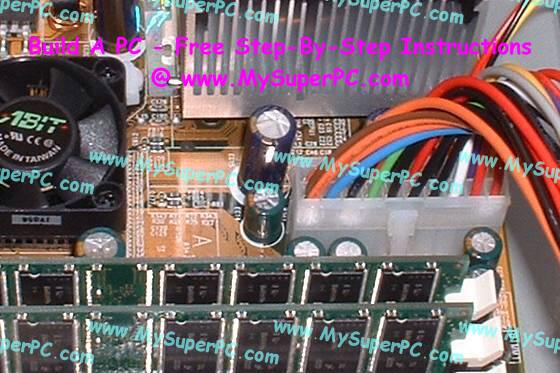

It should look like this.
