Ready The Keyboard and Mouse

Here's what came in the box containing the Logitech Cordless Keyboard and Mouse.

The Duracell Ultra batteries included with the keyboard and mouse are two AA size batteries for the keyboard and two AAA size batteries for the mouse. Flip the keyboard over, open the battery compartment and insert the two AA batteries. Pop the top of the mouse by pushing the latch on the bottom and insert the two AAA size batteries.

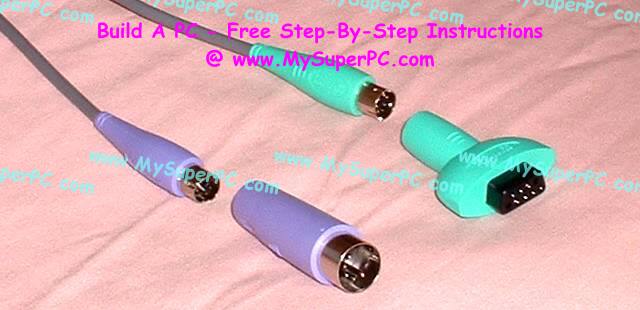

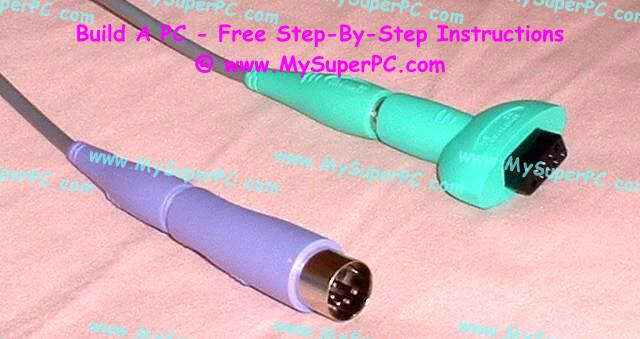

The keyboard and mouse will be connected to the back of the computer using the PS/2 type connectors, so remove the adapters from each.

Next: Computer Assembly - First Boot
