Computer Memory Upgrade
An install guide on how to add or upgrade computer memory

DDR, DDR2 Computer Memory Upgrade

Computer Memory Upgrade Module Install

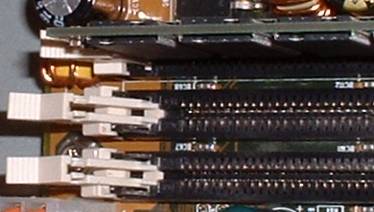

The locking clips have an opening, called a groove, plainly visible here in which the ends of the memory module should be inserted. Then slide the memory module the short distance down the groove so that the memory module rests inside the memory slot.

Computer Memory Upgrade - SDRAM, DDR, DDR2 Memory Module Locking Clips





It's impossible to put the memory module in backwards thanks to the notches which "key" it with the slot. Slide the memory module in between the grooves in the locking clips and rest the memory module in the slot. In this shot, the memory module is not yet installed. At this point, each end of the memory module has been slid through the grooves in the locking clips at each end. Notice that the locking clips are still in the open - unlocked position. The memory module is at the entrance of the memory slot, ready for pressure to be applied to complete the insertion.

Computer Memory Upgrade - Insert SDRAM, DDR, DDR2 Memory Module To Install

Next: DDR, DDR2 Computer Memory Upgrade - Installing The PC Memory (continued)
